Charge Planner

If you enter a departure time and a charging goal, the planning algorithm will automatically find the best loading times.

The planner is only active in Solar and Min+Solar mode. Self-produced solar energy continues to be preferred. If your own energy is not enough, the rest is charged from the power grid. Depending on whether you have one dynamic electricity tariff or a data source for CO₂-predictions currently have three charging strategies:

  1. Cheap charging (dynamic electricity tariff available): Vehicle charges in the cheapest hours before departure.
  2. Green charging (CO₂ forecast available): Vehicle charges in the hours with the lowest CO₂ emissions.
  3. Standard: The planner charges the required energy in the hours shortly before departure. This means that the vehicle's battery is still warm when you leave and less active heating energy is required.

The loading strategies cannot be selected manually, but are selected automatically based on the stored data source.

Create charging plan

To set a plan, click on Plan at the charging point. If evcc knows the charge level of your vehicle (online API) and the battery capacity, you can enter the desired charge level in % in addition to the departure time in the dialog. You will be shown a preview of the charging times. Use the "Active" switch to activate your plan.

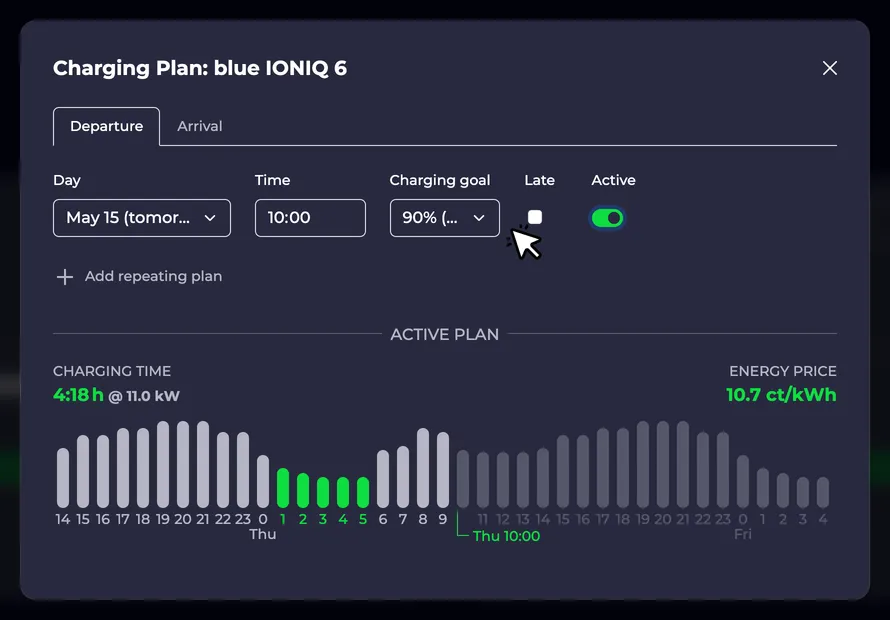

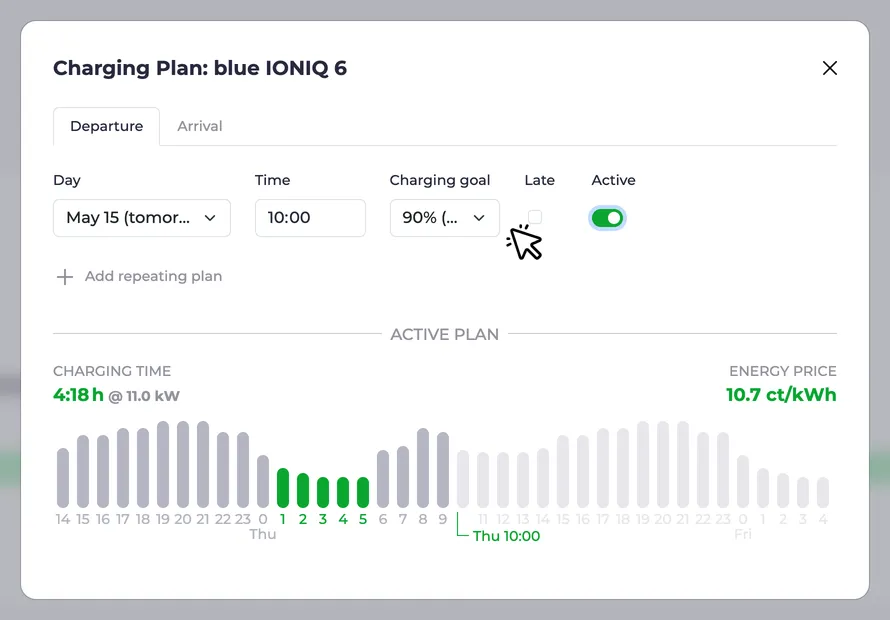

Screenshot of a charging plan using the charging statusScreenshot of a charging plan using the charging status

Repeating plans

You can also create repeating plans. Define on which weekdays the plan should be active. When multiple plans are active, the next matching time will be used and the plan prognosis will be shown in the diagram.

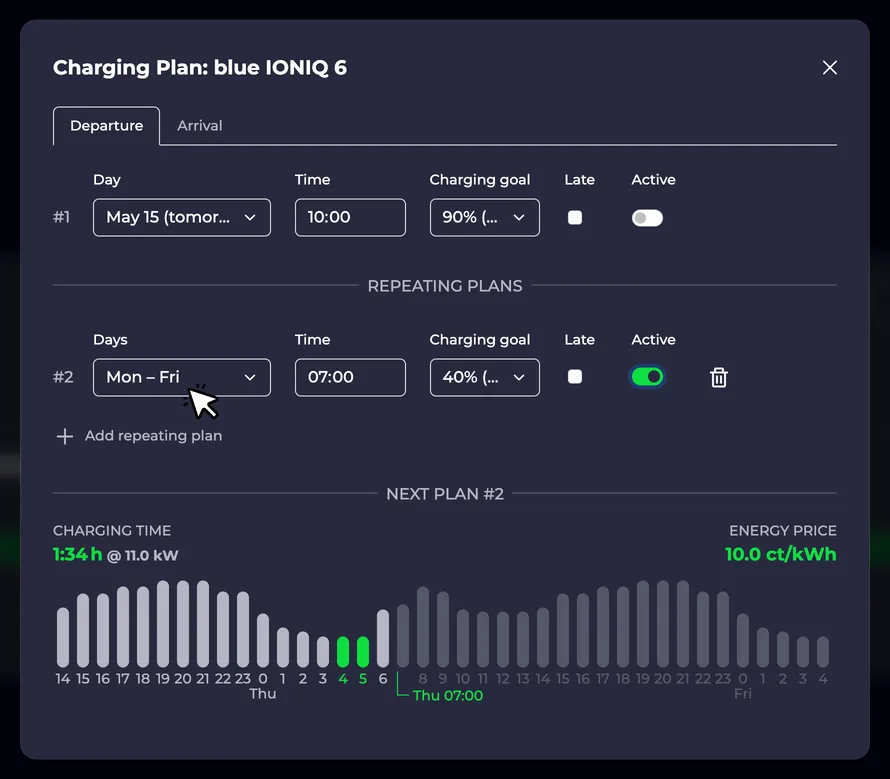

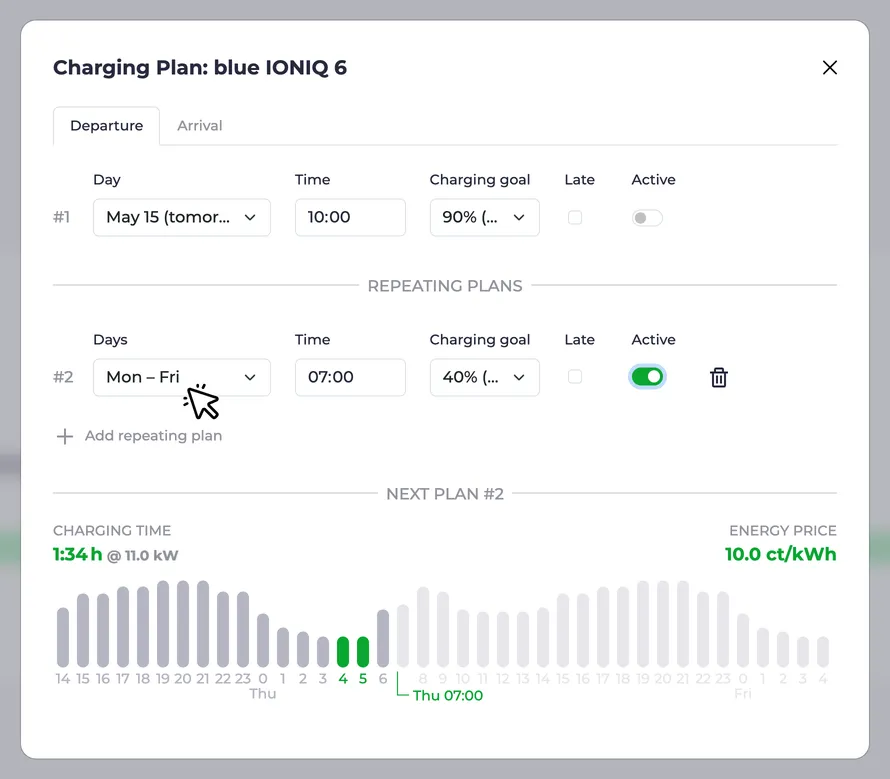

Screenshot of a recurring charging planScreenshot of a recurring charging plan
Note

These state-of-charge based plans are stored per vehicle. This means you can charge multiple vehicles at the same charging point. The planning of the currently connected vehicle will always be used.

Energy amount plan

If the charge level and capacity are not known, planning is done by specifying an energy amount in kWh.

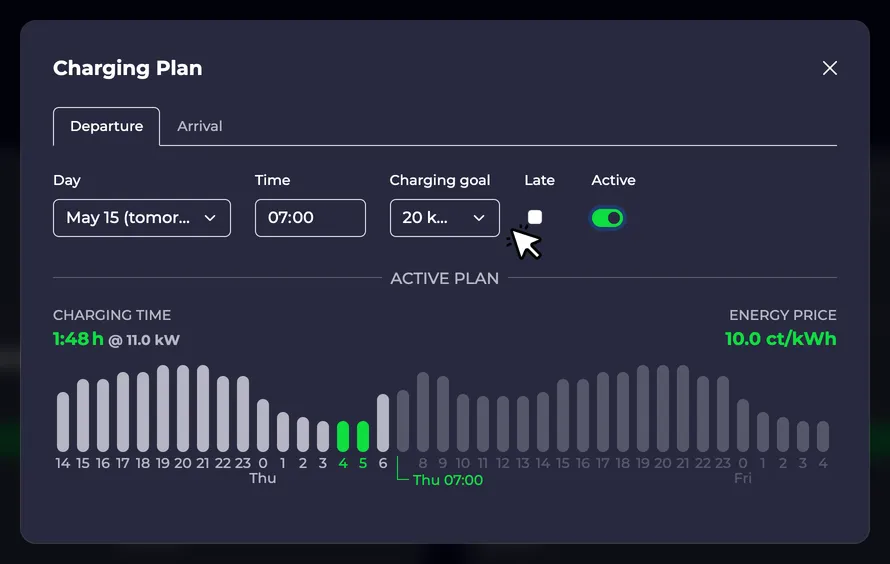

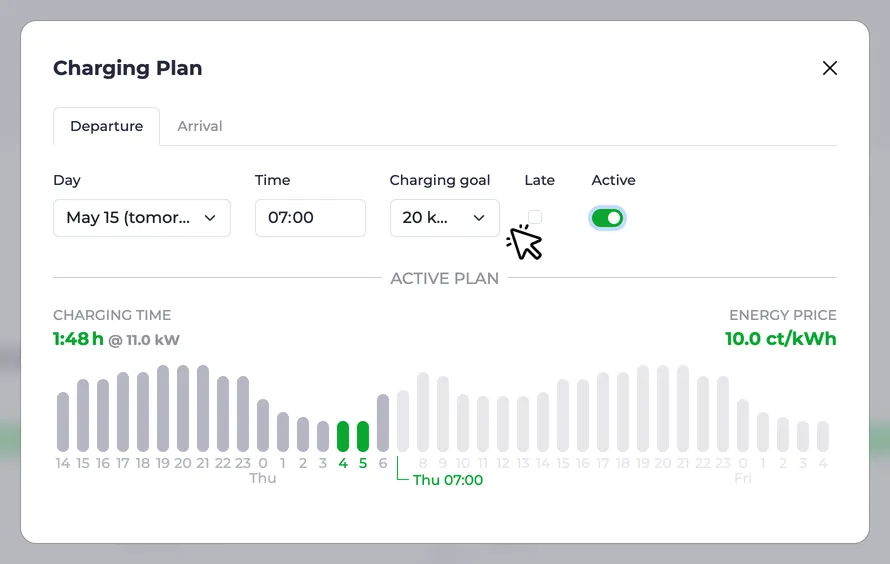

Screenshot of a charging plan using energy amountScreenshot of a charging plan using energy amount

This plan only applies to the current charging session. Repeating plans are not available in this mode.
